HYDRAULIC CAGE
This roll cage is transformed into a practical

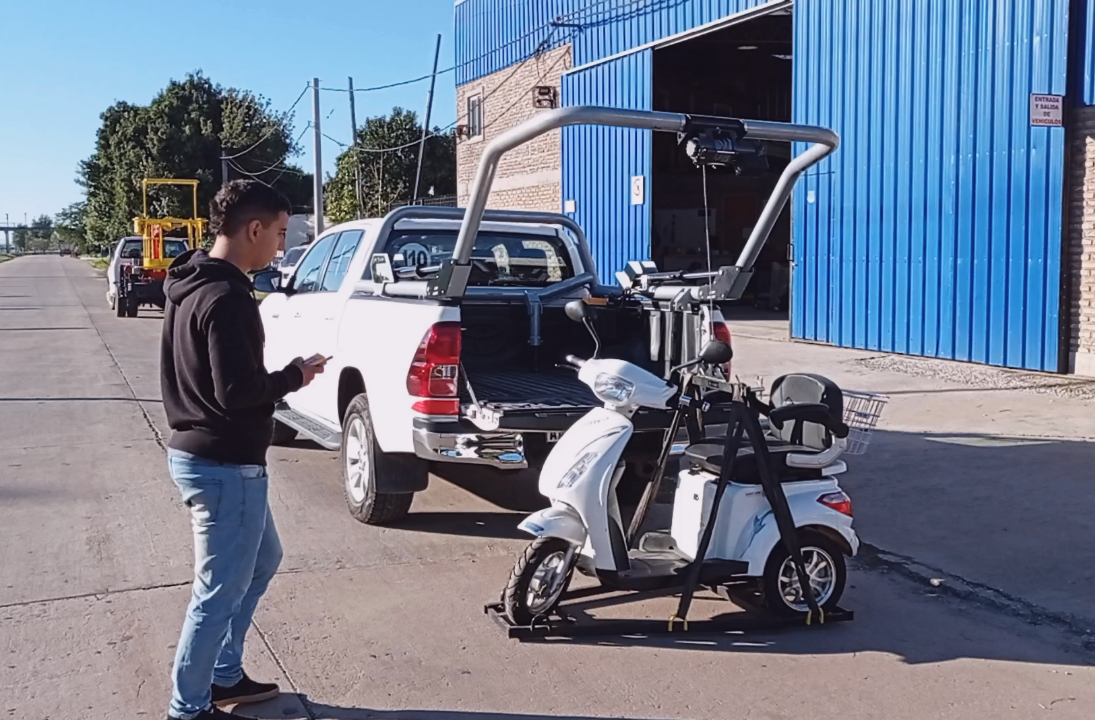

With an electrohydraulic system with remote control, connected to the vehicle’s battery, it is always ready to operate and with precise movements, allows easy loading, with an agile, comfortable and safe operation, combining with different accessories, such as a 12v winch, or various manual hoists.

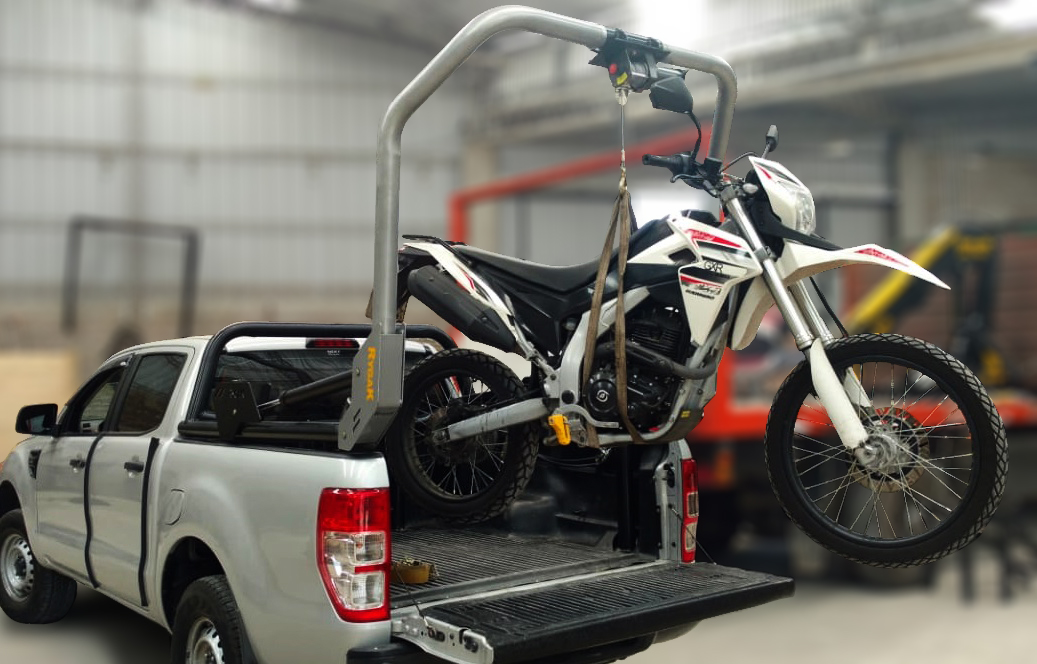

Load from the rear position, with two hydraulic cylinders that work symmetrically. It is installed with four lower supports, integral with the chassis of the vehicle, making a load effort independent of the original truck bed.

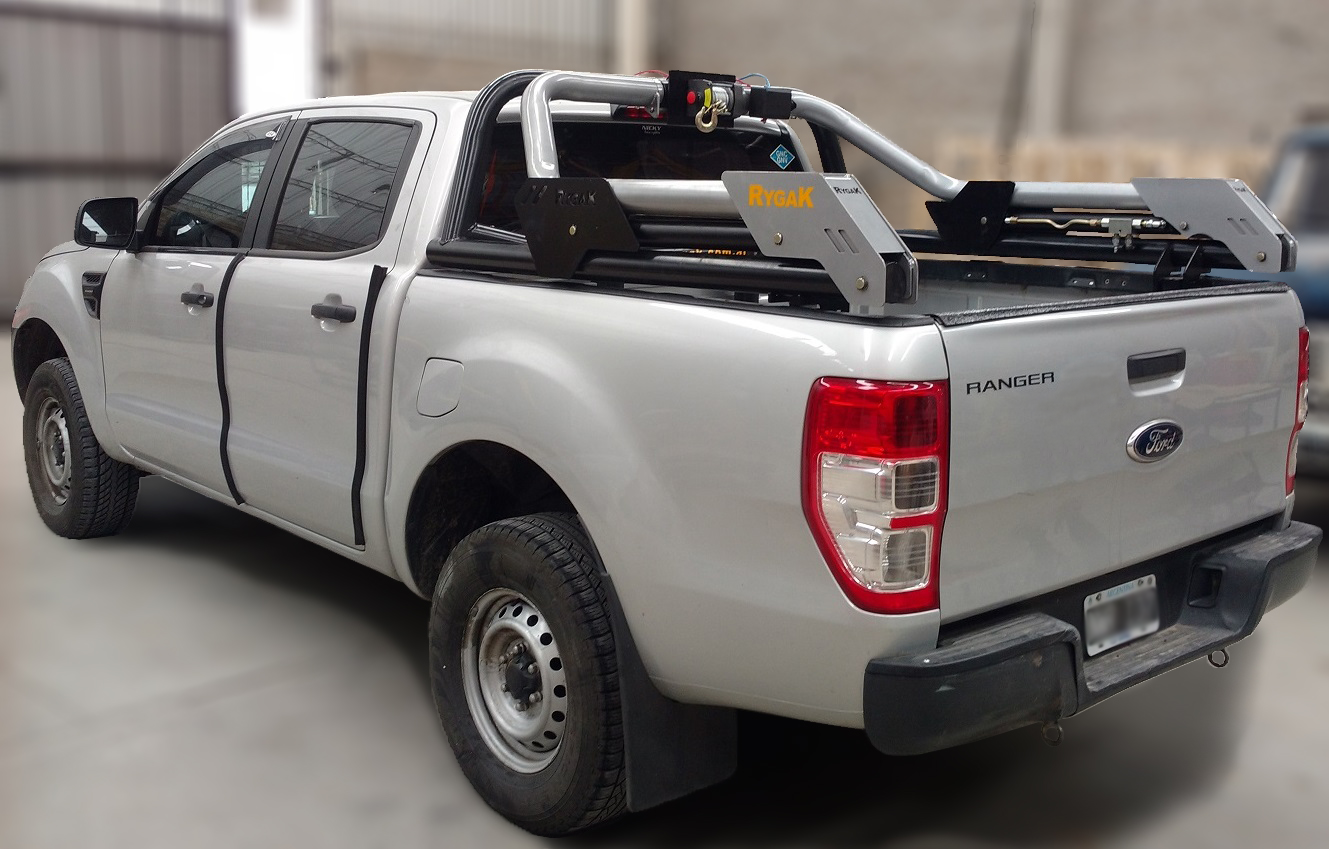

There are models available for single or double cab.
CAGE features.
-
Central electrohidráulica de 12 v.
-
Control remoto.
-
Dos cilindros hidráulicos.
-
Válvulas de seguridad.
-
Kit de protección eléctrica con seguro de carga de batería y corte automático.
-
Llave de corte eléctrica.
-
Estabilizadores mecánicos. (opcional)
-
Posibilidad de adaptación de diferentes accesorios.
-
Soportes inferiores fijados al chasis.
| TECHNICAL SPECIFICATIONS | |
| Loading capacity | 350 kg |
| Stabilized load capacity | 600 kg |
| Maximum floor height of the vehicle | 1.980 mm |
| Maximum height to the ground | 1.960 mm |
| Ángulo máximo de abertura | 136° |
| Equipment weight | 136 kg |
| Maximum working pressure | 140 bar |
| Opcional stabilizers | Doble |
Vídeo

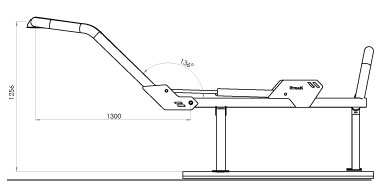

Measurement Chart
Images
