GTA 2500

EASY INSTALLATION AND WITHOUT ATTACKING THE VEHICLE DUE TO:
It does not need PTO or hydraulic pump adaptations in the engine.
With modern design, it can be installed both on the chassis and inside the truck bed.

EASY AND AGILE OPERATION:
Only one person for the whole operation thanks to the remote control with or without cable.
You do not need the engine running to operate the crane, and it quickly remains in working position.

ECONOMY AND CAPACITY:
In operation, because it works without consuming fuel.
In transport, because it is ultra-light.
In the load, because it releases more load capacity.



Download PDF

GTA 2500 features.

• Exclusive design, entirely manufactured with high strength steel plate of 700 mp.

• Two sequential hydraulic and two manual boom extensions.

• Safety valves in all the movements.

• Rotation with slew drive, driven by hydraulic motor.

• Hydraulic stabilizers with manual extension.

• Electrohydraulic DC 12v or 24v.

• Electric protection kit, with two levels of beep, and automatic cut.

• Electric cutting key.

• Additional battery.

• Command to distance with optional wireless remote control.

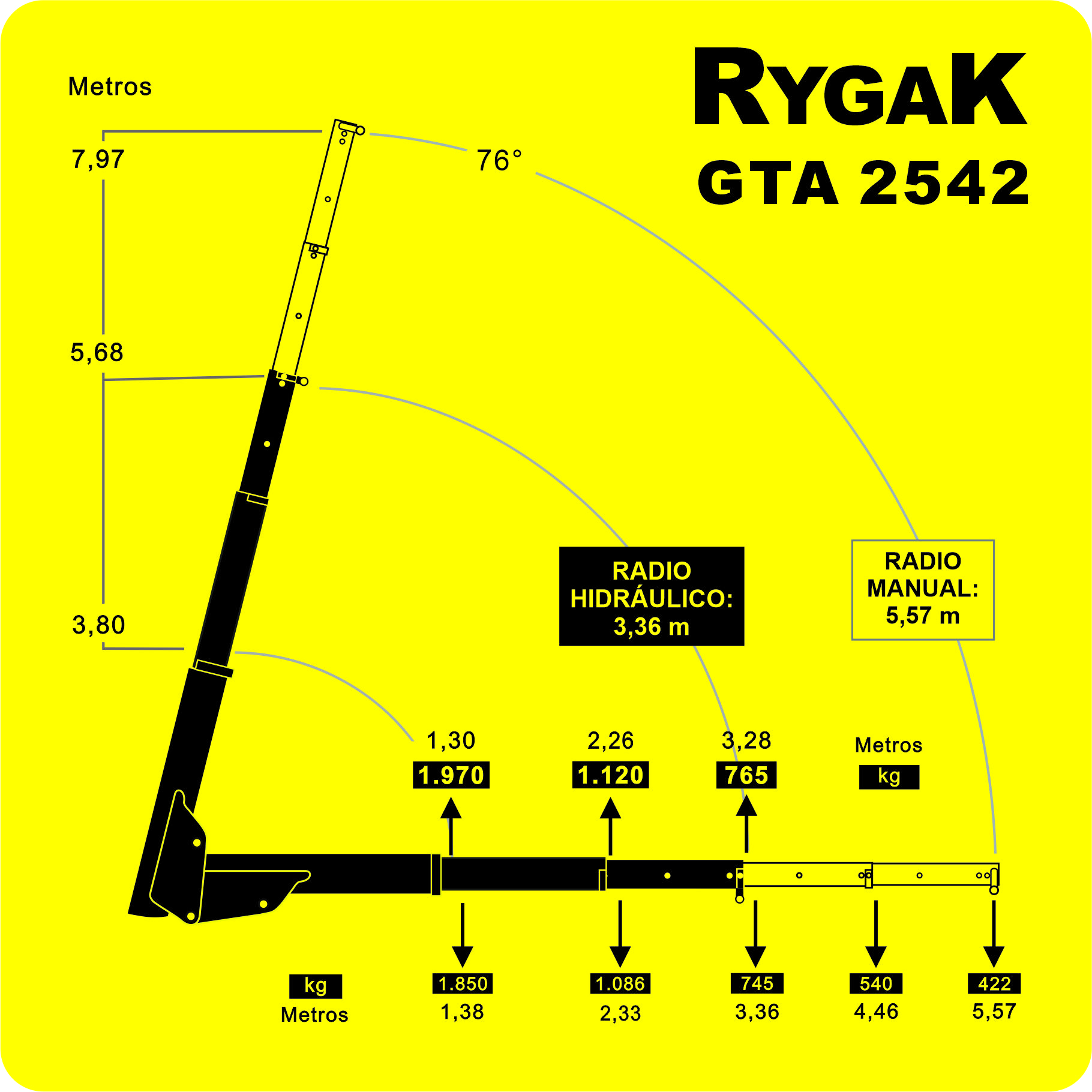

MODELS	UNIT	2531	2542
Moment of nominal load	Kgfm	2500
Real moment at maximum hydraulic reach	Kgfm	2.533	2.503
Quantities of hydraulic extensions	Un	1	2
Maximum horizontal reach	m	4,42	5,57
Capacity in the maximum range	Kg	555	422
Hydraulic horizontal reach	m	2,29	3,37
Maximum capacity in the hydraulic range	Kg	1.106	745
Maximum capacity in the first coupling	Kg	1.990	1.970
Minimum reach in the first hitch	m	1,30
Maximum vertical reach of the floor (approx.)	m	6,82	7,97
Hydraulic vertical reach	m	4,65	5,68
Maximum opening angle	grados	76
Minimum lifting radius	m	3,78
Type of rotation	SLEW DRIVE WITH HYDRAULIC MOTOR
Angle of rotation	Degrees	380
Equipment weight	Kg	390	620
Busy space for assembly	m	0,50
Maximum working pressure	bar	180
Tank capacity	It	24
Hydraulic stabilizerss (Optional Mechanics)	Un	2

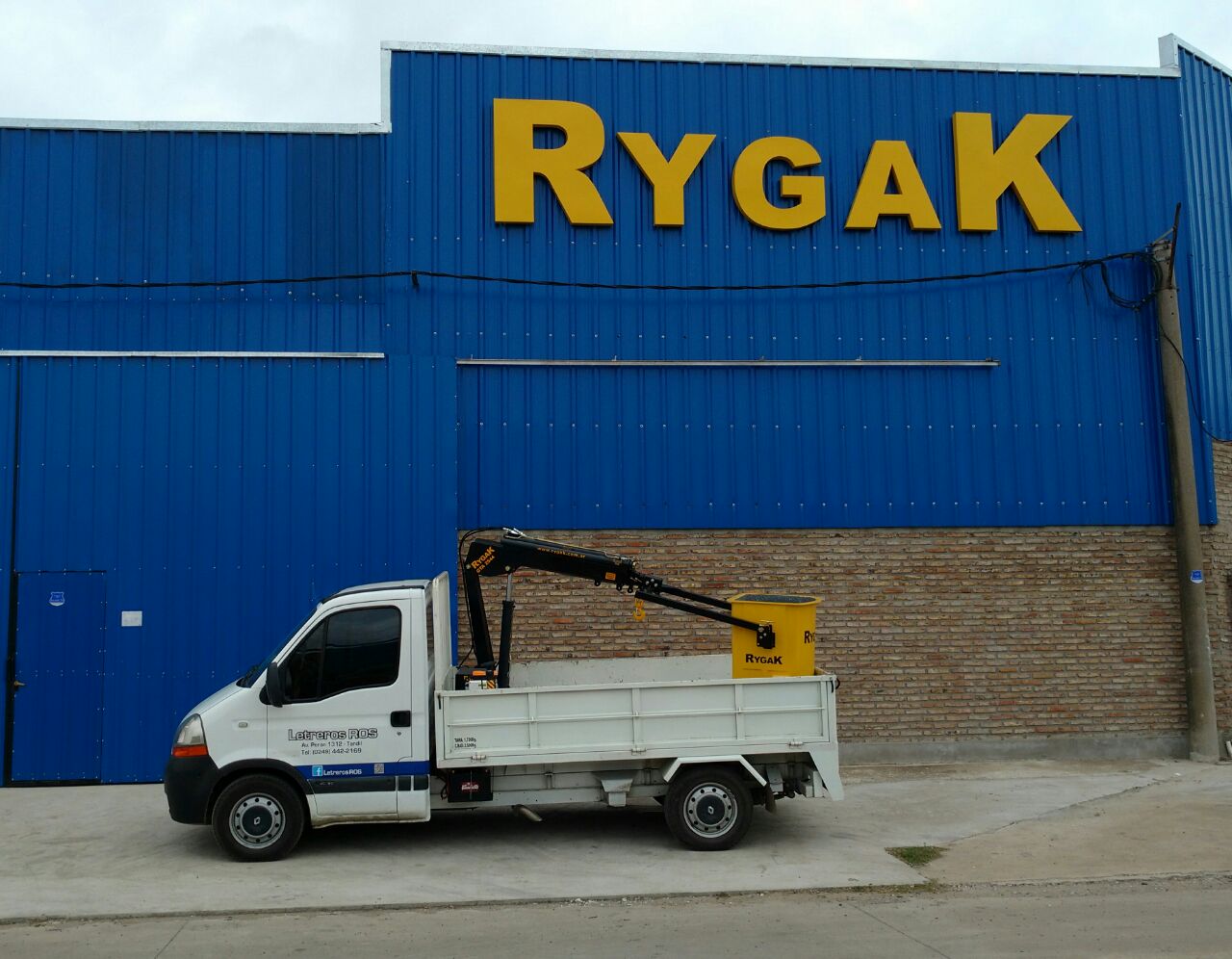

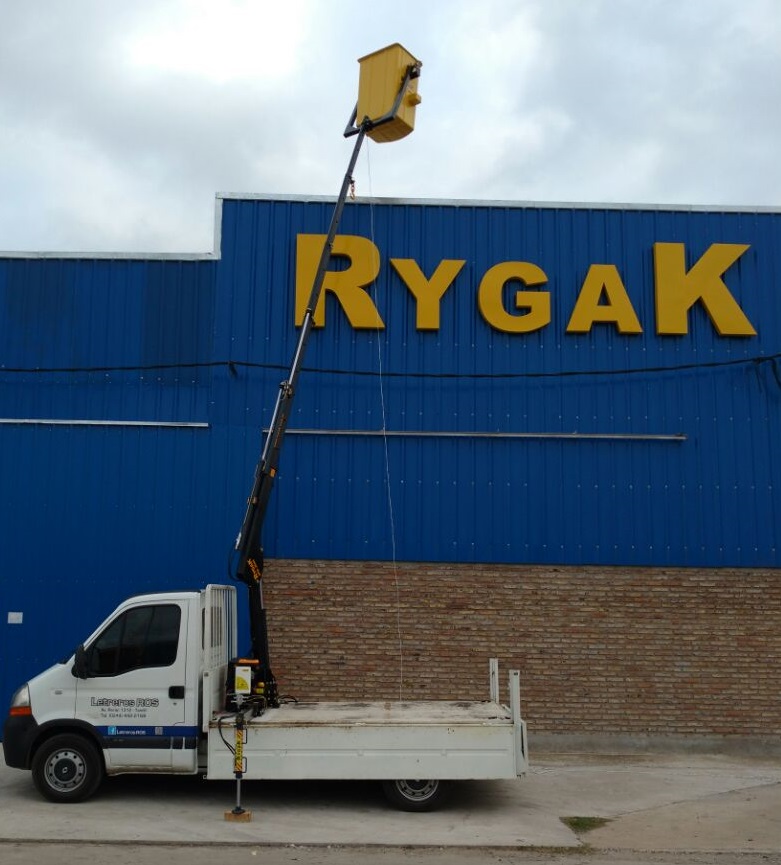

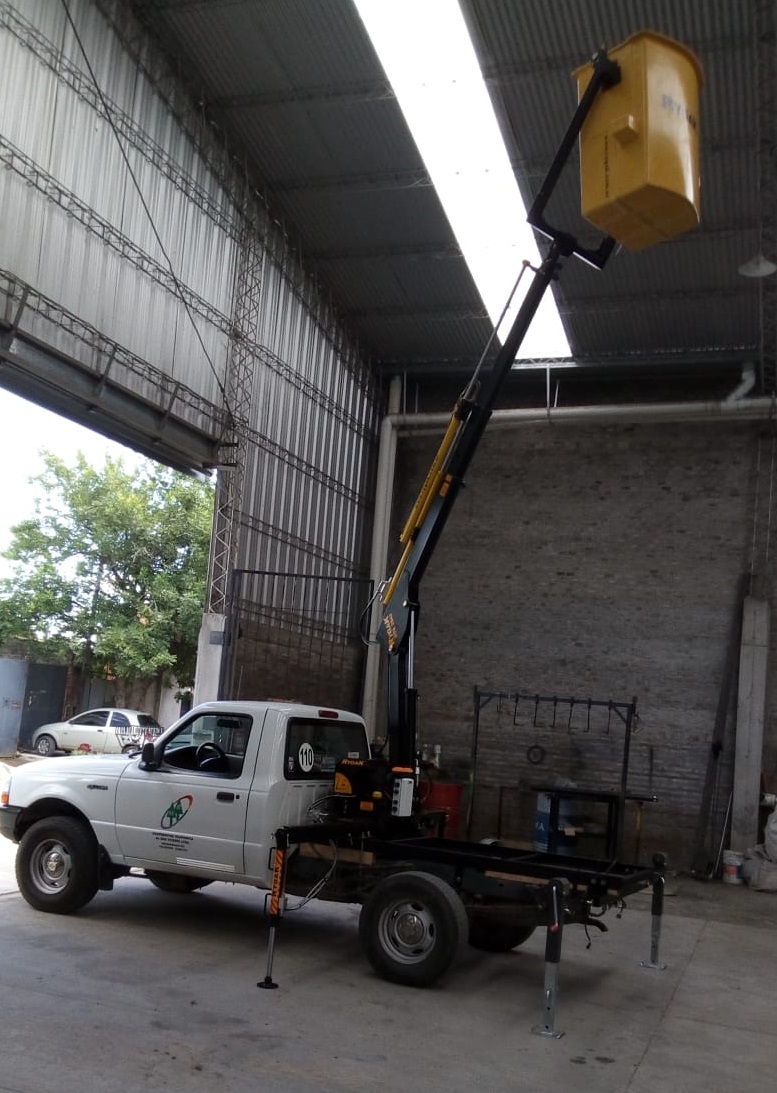

Images
