HYDRAULIC ROLL BAR
A solid roll bar is transformed into a practical hydraulic crane responding very well to both functions.
With an electrohydraulic system with remote control always ready to operate, with precise movements, it allows easy loading with an agile, comfortable and safe operation.
Load from the lateral position, and installed with two lower supports, integral with the vehicle chassis and the stabilizer bar, making a load effort independent of the vehicle body.
There are models available for single or double cabin trucks.
ROLL BAR features.
-
Central electrohidráulica de 12v.
-
Control remoto.
-
Cilindro hidráulico.
-
Válvulas de seguridad.
-
Kit de protección eléctrica con seguro de carga de batería y corte automático.
-
Llave de corte eléctrica.
-
Estabilizador mecánico (opcional).
-
Posibilidad de adaptación de diferentes accesorios.
-
Soportes inferiores fijados al chasis.
| TECHNICAL SPECIFICATIONS | |
| Loading capacity | 250 kg |
| Maximum floor height of the vehicle | 1685 mm |
| Maximum height to the ground | 2440 mm |
| Stabilized load capacity | 500 kg |
| Opcional stabilizers | 1 un |
| Equipment weight | 58 kg |
| Maximum working pressure | 140 bar |
Vídeo

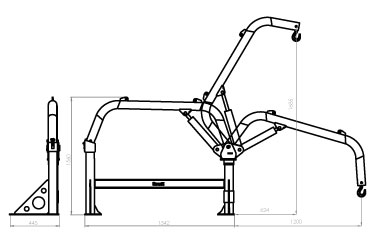

Measurement Chart
Images
